Metal Lathe Double Head Double Chuck RC-210E Automatic Inch/Metric Conversion 1100W Benchtop Electronic Gear Lathe Machine 50-2500rpm Variable Speed 8"*32" Electronic Pulse Precision 110V

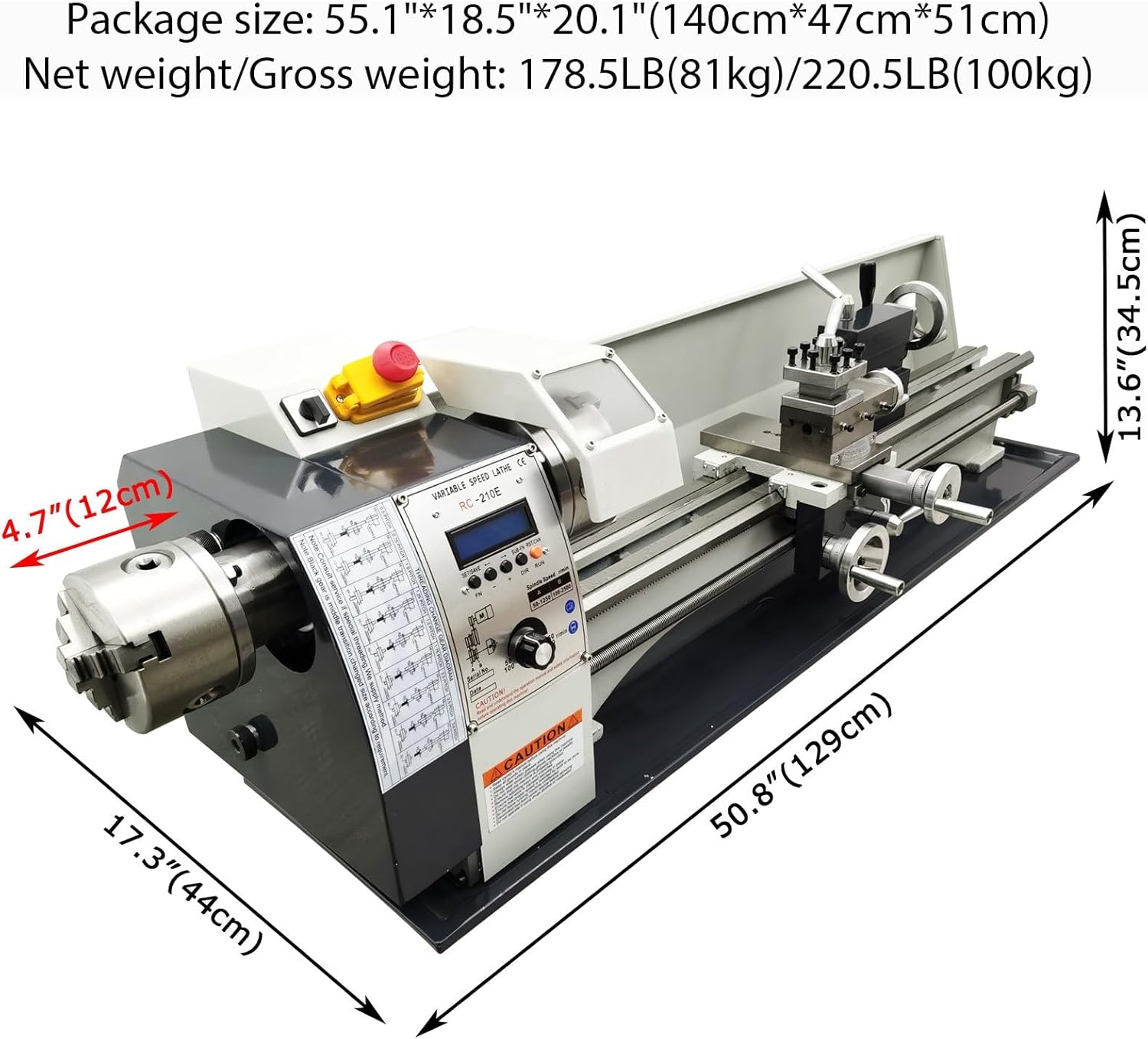

Product Parameters:Model: RC-210EVoltage: AC110V 50/60Hz(Brushless Motor)Power: 1100W(1.5HP)Length of center: 31.50"(800mm)Swing Over Bed: 8.27"(210mm)Concentricity tolerance: 0.03mm-0.05mmRotary diameter of tool rest: 5.51"(140mm)Spindle bore: Right side: 1.50"(38mm)Left side: 1.26"(32mm)Max clamping diameter of right chuck: 4.92"(125mm)Max clamping diameter of left chuck: 3.54"(90mm)Width of lathe bed: 3.94"(100mm)Thread standard: Metric/imperial/customizedTurning delay start time: 1s-30sNumber of Spindle Speeds: Infinitely variable speedsRange of Inch Threads: 10-44T.P.IRange of metric threads: 0.5mm-3mmSpindle taper: MT5Knife rest labour: Horizontal four-stationSpindle rotation speed: 50-2500rpmPrecision of the spindle: 0.01mmAutomatic feed range: 0.01mm-0.4mmTail frame taper: MT2Maximum stroke of tool rest plate: 2.16"(55mm)Maximum stroke of middle plate: 2.95"(75mm)Maximum stroke of bottom plate: 26.77"(680mm)Maximum stroke of tailstock sleeve: 2.36"(60mm)Package size: 55.1"*18.5"*20.1"(140cm*47cm*51cm)Net weight/Gross weight: 178.5LB(81kg)/220.5LB(100kg)Attention: The yellow parts on the lathe body and chuck are rust proof oil, which is a normal phenomenon. They can be wiped off with oil or gasoline before use. Before starting, be sure to clean the rust proof oil on the chuck and rotate it by hand to prevent the chuck from getting stuck and causing the circuit board to burn out!!Item Included (028364)RC-210E lathe *1Base oil pan *1English manual *1Oil can *1Hexagon wrench *5Open spanner *2The screwdriver *2Chuck jaw *3Chuck spanner *1

• High quality: The lathe is made of sturdy cast iron material and undergoes quenching treatment, significantly improving the strength, toughness, and wear resistance of the bed, ensuring the stability of the lathe during long-term operation
• Switchable between metric and imperial systems: This lathe can automatically switch between metric and imperial systems without shifting gears, greatly facilitating the operator. Processing both imperial and metric threads is easy, without the need to replace parts or adjust settings, improving work efficiency and processing flexibility
• Indexing function: You can switch the direction of turning tool through "DIR" button. Angles can be cleared with one click
• Convenient design: The lathe is equipped with a user-friendly operating interface, including a one click start stop switch and forward/reverse switch, making operation more convenient and efficient
• Wide applicability: This lathe is suitable for processing various materials, including metal, plastic, wood, etc. It can process various rotating surfaces and end faces of rotating bodies. For example, turning inner and outer cylindrical surfaces, conical surfaces, ring grooves, formed cutting surfaces, and turning end faces. Whether it's industrial production or DIY enthusiasts, they can find suitable application areas for themselves
