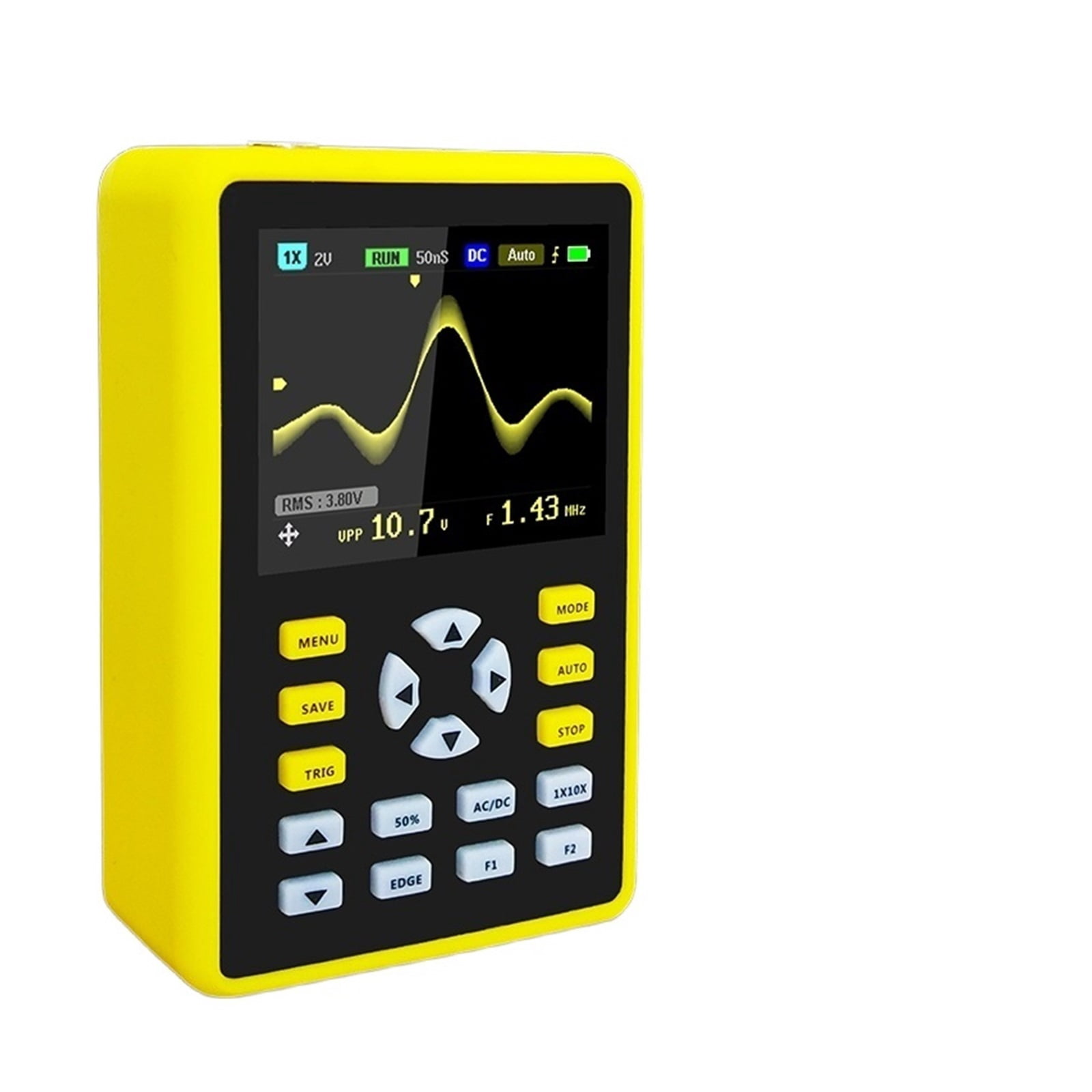

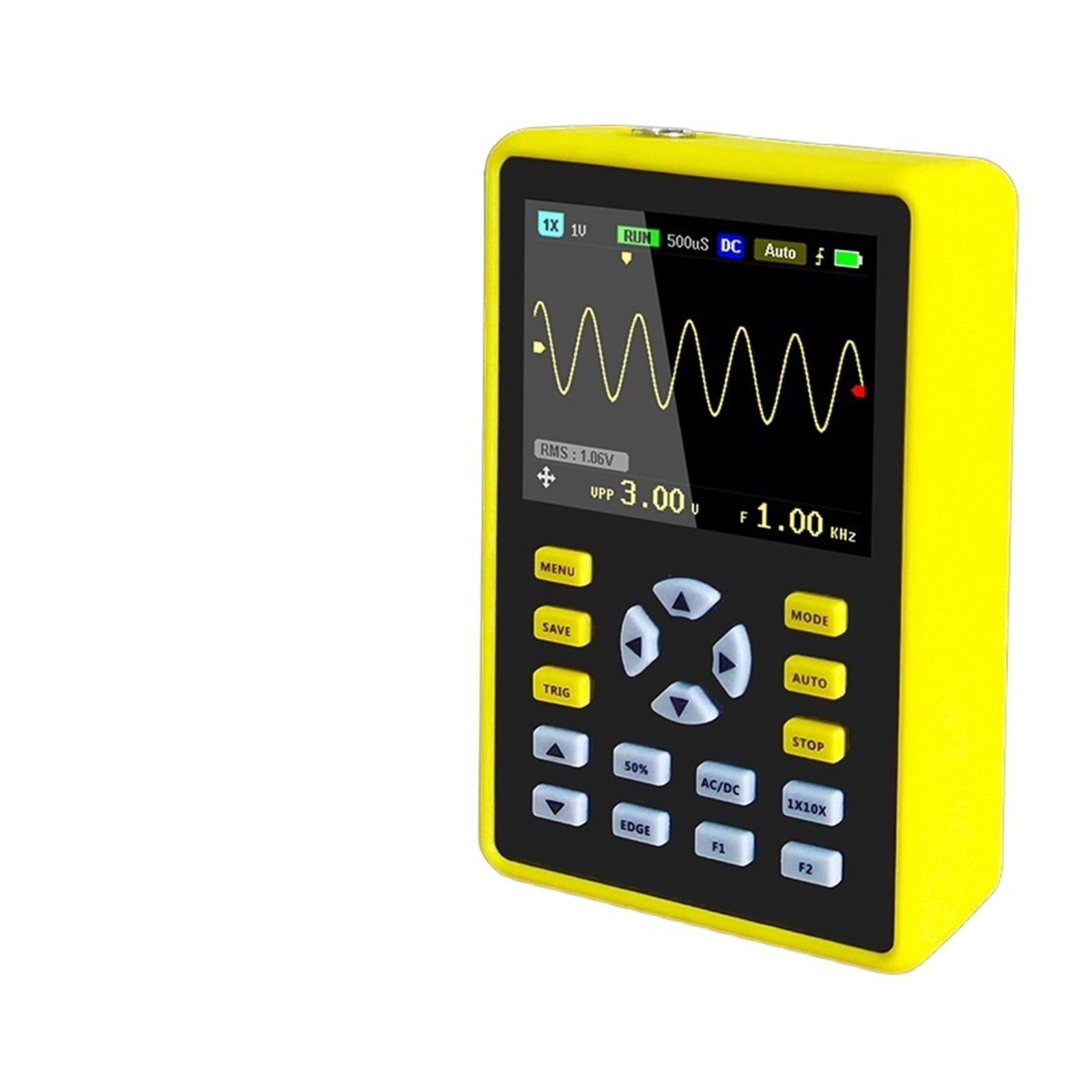

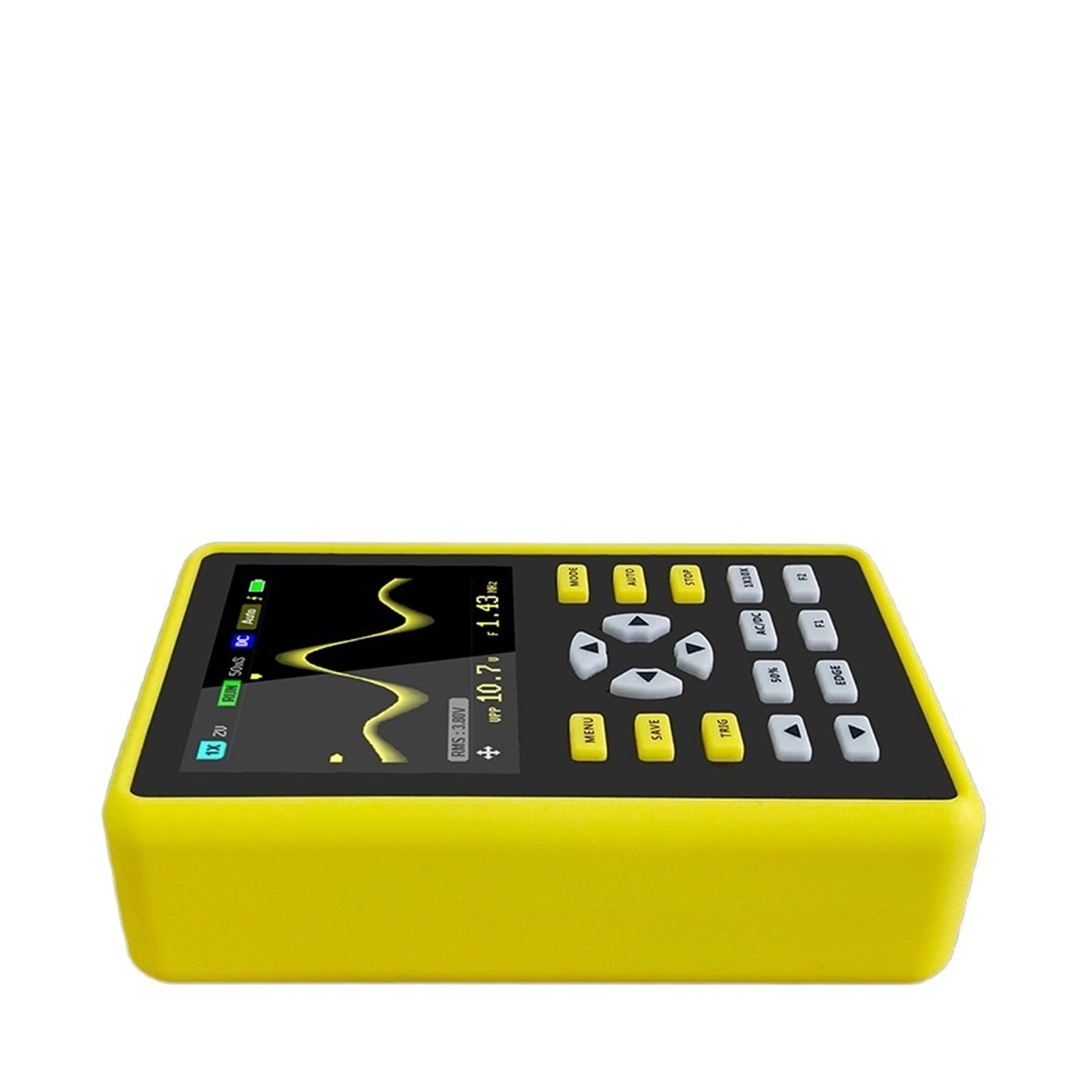

5012H Handheld Mini Digital Oscilloscope 500MS/s Sampling Rate 100MHz Analog Bandwidth ,Professional Designed

<p>Key features:</p><p>1:Intelligent anti-burn</p><p>2:2.4 inch color display screen</p><p>3:100MHz analog bandwidth @ 500MS/s sampling rate</p><p>4:One-button waveform storage</p><p>5:Built-in 64M storage space, the maximum storage of 2000 waveform pictures</p><p>6:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions</p><p>7:At any time, the waveform display (pause function) is frozen</p><p>8:Equipped with high efficiency One-button AUTO</p><p>9:Complete triggering function (single, normal, automatic)</p><p>10:Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use</p><p>11:Screen brightness adjustment</p><p>12:Memory compression technology, waveform refresh screen does not flicker</p><p>13:Anti-slip anti-drop silicone sleeve</p><p>14:Ultra small volume, easy to carry</p><p></p><p>Specifications:</p><p>1:Analog band width: 100MHz</p><p>2:Maximum real time sampling rate: 500MS/s</p><p>3:Vertical sensitivity: 50 mV/div ~ 100 V/div</p><p>4:Horizontal time base range: 50S/div ~ 6nS/div</p><p>6:Storage depth: 128KB</p><p>7:Input resistance: 1M</p><p>8:ADC precision: 8bits</p><p>9:Coupling mode: AC/DC</p><p>10:Trigger mode: Single, Normal, Auto</p><p>11:Trigger edge: Ascending/descending edge</p><p>12:Display: 2.4 inch - 320*240</p><p>13:Power supply: 3000 mAh lithium battery</p><p></p><p>Oscilloscopes,Tools</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• It is a multi-functional, practical and cost-effective handheld oscilloscope suitable for the maintenance industry and R&D industry. The real-time sampling rate is up to 500MSs, the analog bandwidth is 100MHz, and it has a complete trigger function of single normal and automatic. It is suitable for periodic analog signals. Free to use and aperiodic digital signals.
• Don't worry about burning the oscilloscope if the high voltage is not detected to the 10X position. Large time base scanning mode, monitoring slow level changes. Equipped with one-key AUTO, the measurement waveform can be displayed and adjusted without complicated operations.
• It displays a 2.4-inch high-definition LCD screen with a resolution of 320*240. Extremely convenient and fast waveform storage function, built-in 64M storage space, can store up to 2000 waveform pictures, the storage process is simple and fast, save the current waveform anytime and anywhere, just one touch, without cumbersome prompts and selections, quietly save Current waveform, very convenient.
• A powerful waveform file manager that supports functions such as thumbnail browsing, viewing, detailed viewing, page turning, and deletion. Built-in 3000mah lithium battery, fully charged can be used continuously for 8 hours.

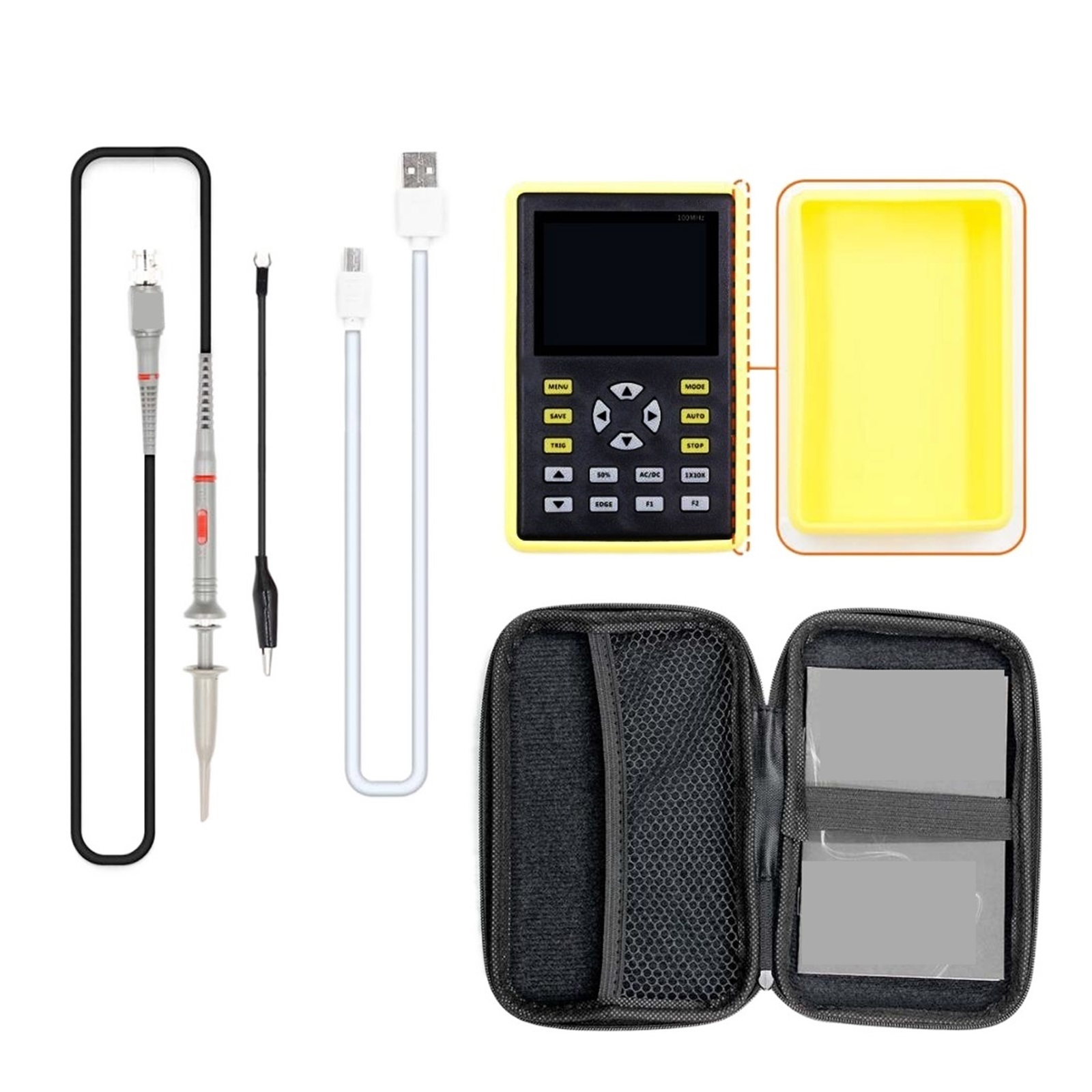

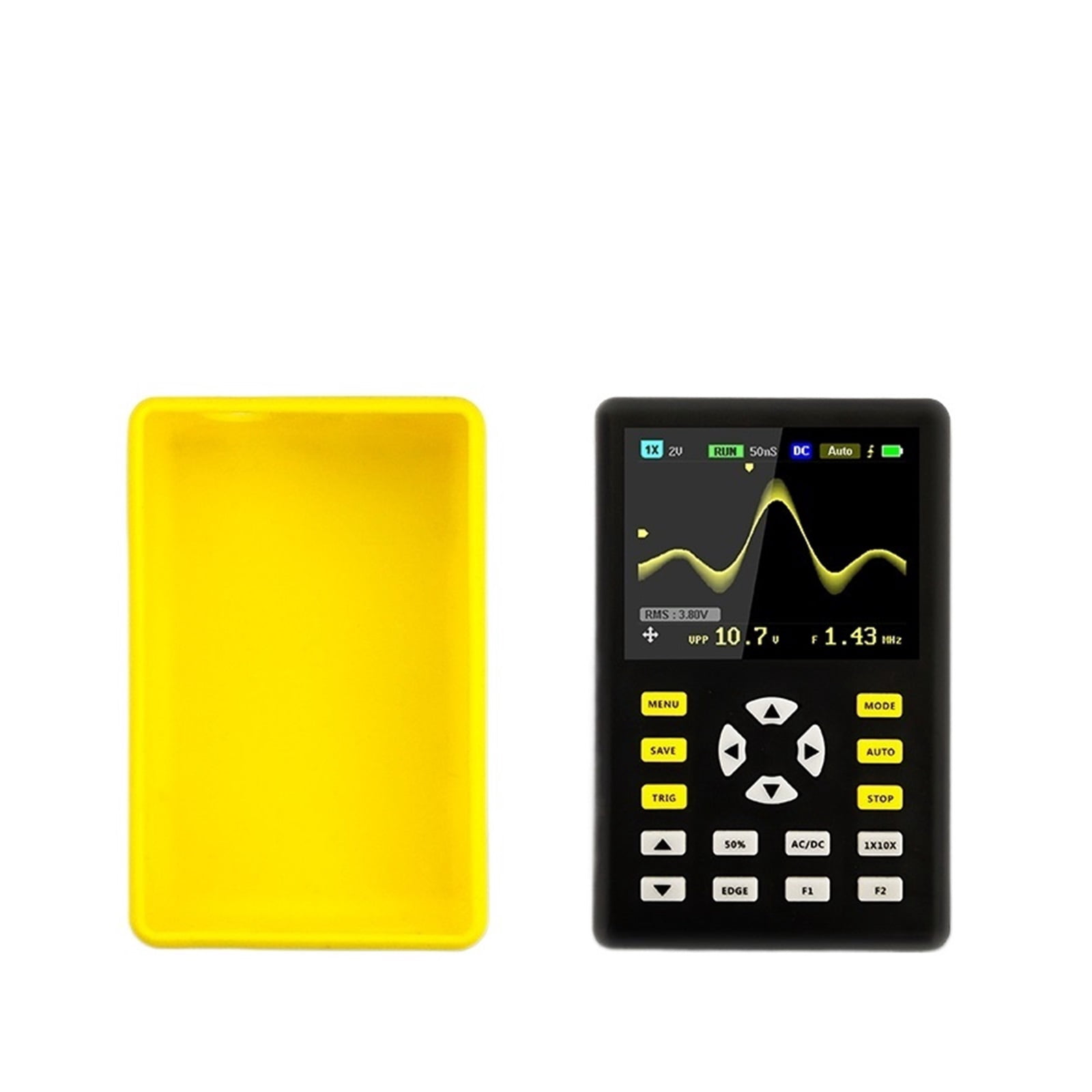

• The fuselage is equipped with a silicone protective cover, which is non-toxic, lead-free and environmentally friendly, non-slip, shockproof and shockproof, and fully protects the fuselage. The texture is soft and feels very comfortable.
