4.10-6 6 Inch Go Kart Wheels Complete Kit Front Steering Wheel Gear Rack 12v 12ah SLA Batteries Spindles Hubs 34'' Rear Axle Differential Motor for ATV UTV Quad Buggy Riding Mower Tractor Drift Trike

4.10-6 ATV UTV wheels: Condition: brand new Color: Black Centre Hole: 54mm (2.12 inch) Bolt Diameter: 8mm (0.31 inch) Mounting Hole Eye To Eye: 78mm (3.07 inch) Wheel Height: 320mm (12.6 inch) Wheel Width: 105mm (4.13 inch) Steering Wheel Shaft kit: Condition: 100% Brand New Material: metal Color: gold, black, silver Steering wheel parts set includes tie rod, rack and adjustable shaft Rear Differential Split Axles Kit: Condition: brand new Material: metal Color: black Total length: 860mm/ 33.86 inch Split Axle: 450mm/17.72 inch (plz check the size picture for the dimension specification) Fitment: for ATV UTV Go Kart Golf Cart Buggy Quad Lawn Mower Drift Trike Tricycle 4 Wheeler Brushless Differential Motor: Condition: brand new Material: metal Color: black Gear Ratio: 9.5:1 Torque: 2.62Nm Rated Speed: 4800rpm Rated Voltage: 48V Rated Output: 1000W Rated Current: 18-35A Max Discharging Time : 140mins High Speed: 20mph Medium Speed: 16mph Low Speed: 10mph( under the load of 198lbs, and the weight of the bike is 154lbs) Protect Rate: IP54 Insulation Level: B Motor length: 250mm (9.84 inch) Brushless Controller: Condition: 100% Brand New Nominal Voltage: DC 36V/ 42V/ 48V/ 52V/ 58V/ 60V/ 64V/ 72V/ 84V Rated Power: 1000W-2200W Matching Motor: DC Brushless Motor Under Voltage Protection: 20V Max Current: 40A-50A Brake: Low/ high electric level Motor Phase Angle: Automatic identification Features: 18 Tube,Square Wave Size: 238 x 84 x 41mm/ 9.4 x 3.3 x 1.9 inch Rear Brake Assembly: Brand New Hydraulic Front Disc Brake Twin Calipers with Master Cylinder & Brake Pads Brake System Fit 110cc 125cc DIY Quad Bike ATV Buggy High compression hydraulic cable Come with brake pads Packages Includes: 1x 34" rear axle shafts kit 1x 48v 1000w brushless motor 1x 48v 1000w speed controller 1x brushless wiring harness 1x ignition key switch 1x 3 speed switch 1x throttle pedal 1x brake switch 1x charging port 1x terminal block 1x forward reverse switch 1x power indicator 1x brake caliper 1x 25ah air switch 4x 4.10-6 wheels 1x steering wheel 1x front gear rack tie rod kit A pair front steering spindles A pair front steering hubs 4x 12v 12ah 6-DZM-12 lead acid batteries 1x 48v charger 3x battery connect cables 1x Wirings loom

• 4.10-6 Go Kart Wheels: 320mm (12.6 inch) in height, 105mm (4.13 inch) in width; Mounting hole spacing 78mm (3.07 inch); Centre Hole 54mm (2.12 inch); Puncture resistant,used in soft,intermediate and hard packed terrains; Dynamic tread patter provides exceptional acceleration and traction
• 34 inch Differential Axle Kit: Made from high-strength metal, this rear differential split axles kit is built for toughness and durability to handle rugged terrains and heavy loads; With a total length of 860mm (33.86 inches); Complete Axle Kit Includes 2 rear differential split axles, brake disc, and hubs, providing all necessary components for a smooth and easy installation

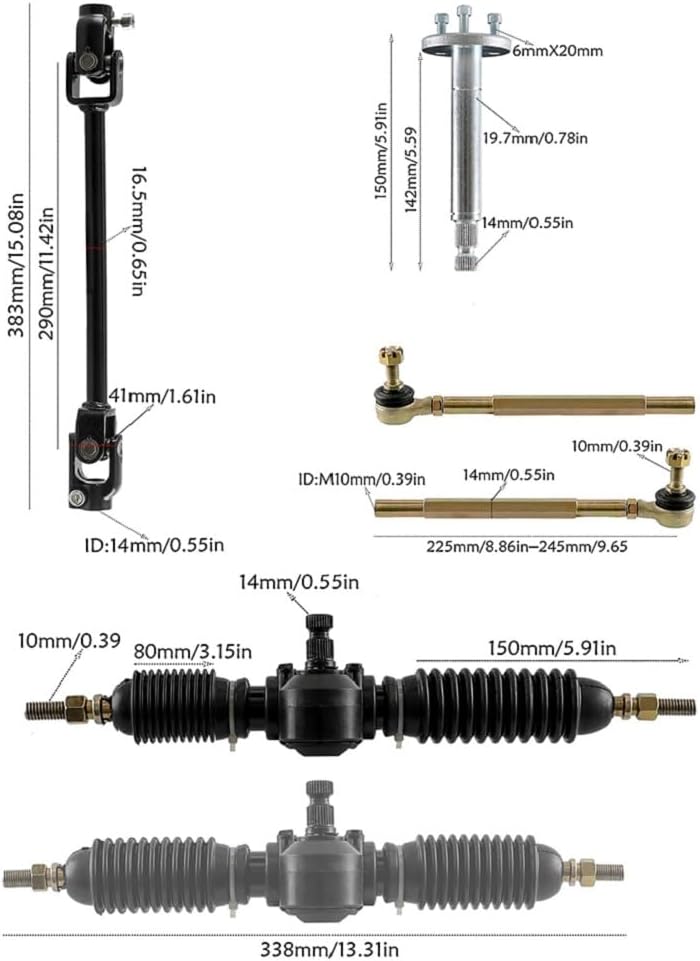

• Steering Wheel Shaft Tie Rod Gear Rack Pinion Kit: Includes tie rod, rack and adjustable shaft
• DC 48V 1000W Brushless Differential Motor Gearbox: Rated at 1000W with a torque of 2.62Nm and a speed of 4800rpm; Rated voltage of 48V with a current range of 18-35A for stable operation; Efficient Gear Ratio 9.5:1; Max discharging time of up to 140 minutes
• Wide Application: Universal for Electric Go Kart ATV UTV Drift Trike Golf Cart Quad Buggy Dune Moped Lawn Mower Four Wheeler Tricycle Mobility Offroad Motorcycle
• Packages Includes: 1x 34" rear axle shafts kit; 1x 48v 1000w brushless motor; 1x 48v 1000w speed controller; 1x brushless wiring harness; 1x ignition key switch; 1x 3 speed switch; 1x throttle pedal; 1x brake switch; 1x charging port; 1x terminal block; 1x forward reverse switch; 1x power indicator; 1x brake caliper; 1x 25ah air switch; 4x 4.10-6 wheels; 1x steering wheel; 1x front gear rack tie rod kit; A pair front steering spindles; A pair front steering hubs; 4x 12v 12ah 6-DZM-12 lead acid batteries; 1x 48v charger; 3x battery connect cables; 1x Wirings loom
• Please Note: Please check out all details including size of the items before order, to make sure the item fits, thanks
